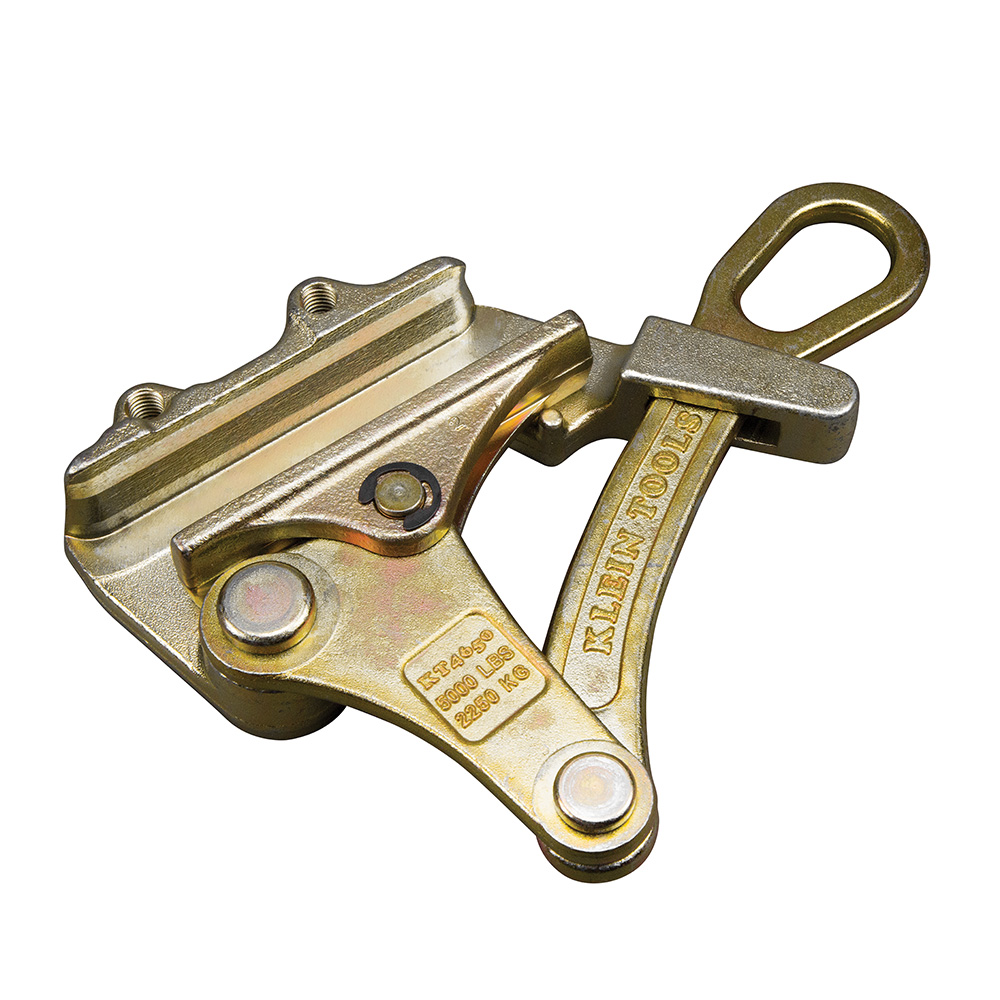

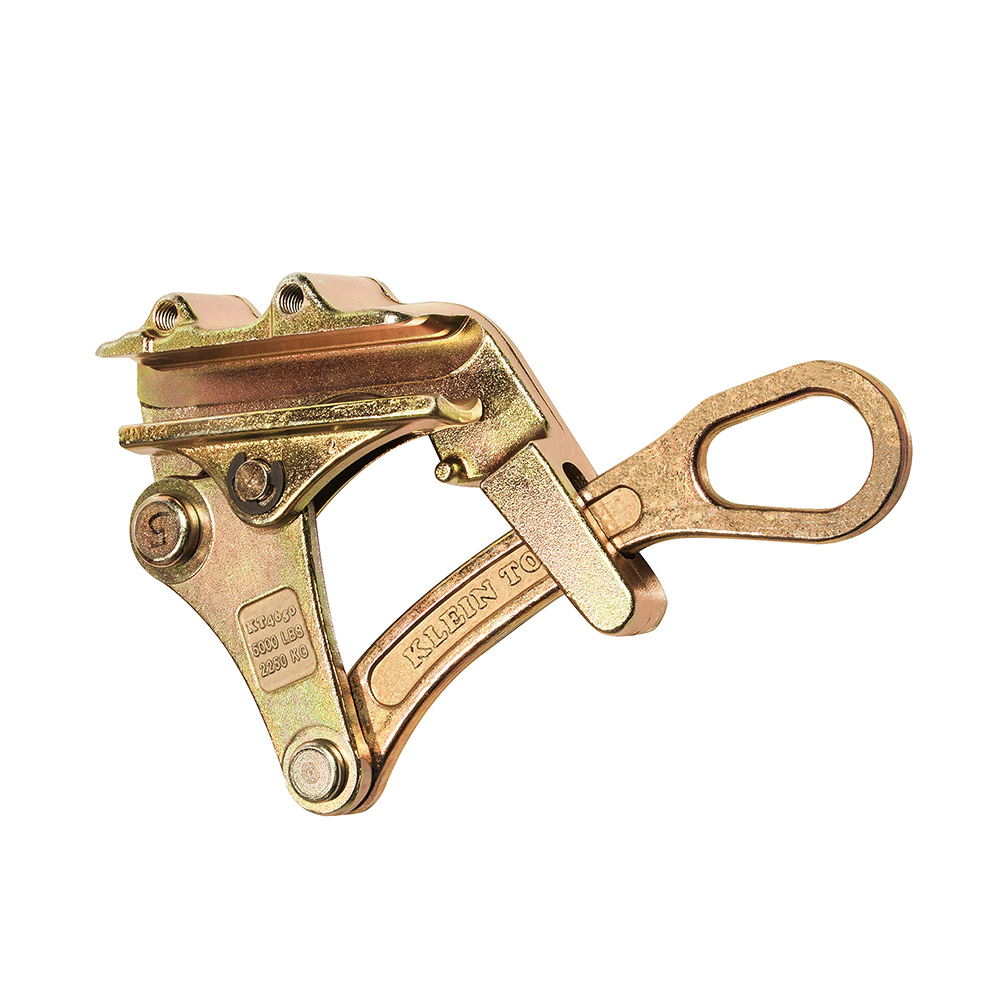

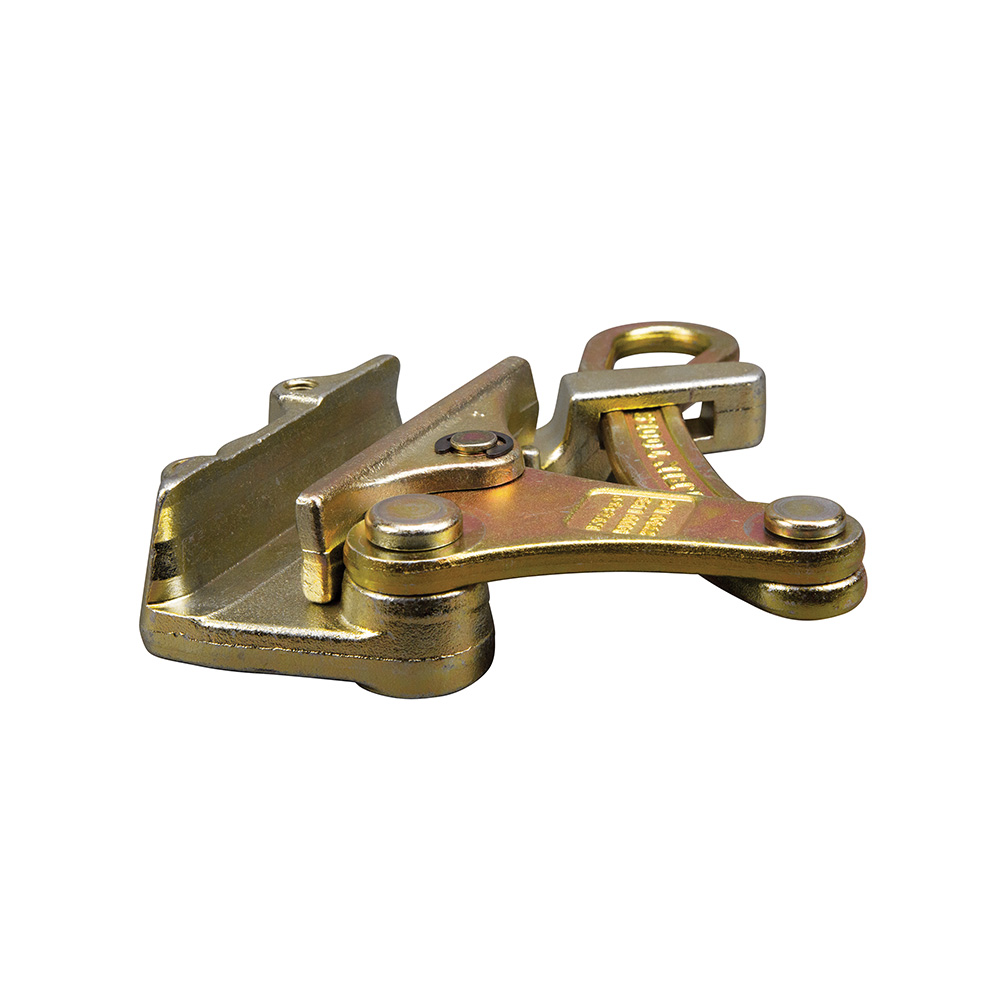

Wide Range Distribution Grip
KT4650
Wide Range Distribution Grip
KT4650
$217.67
Versatile grip holds a wider range of ACSR cable sizes reducing the number of grips needed
Round jaw provides maximum contact with the cable minimizing deformation
Large handle opening accommodates a wide variety of hooks on hoists, winches, and tackle blocks
Max Safe Load of 5000-Pound (2268 kg)
Made in USA
11.25-Inches (285.8 mm) long
Lightweight; only 4.4-Pound (2.0 kg)
Spring assist
The newest grip from Klein Tools features a large jaw opening that can accommodate a wide range of cable types and sizes. It also has both a ''V'' groove shaped jaw and a round jaw. The large handle opening accepts many size hooks used on hoists, winches, and tackle blocks.
Specifications
Type:
Parallel Jaw Grip
Application:
Large Range of Cables
Special Features:
Spring
Overall Length (Inch):
11.25
Overall Length (cm):
28.6
Overall Height (Inch):
1.797
Overall Height (cm):
4.6
Overall Width (Inch):
4.5
Overall Width (cm):
11.4
Cable Type:
ACSR, AAC, Copper
Cable Diameter:
0.16'' to 0.9'' (4.06 to 22.86 mm)
Hot Latch:
No
Swing Latch:
No
Spring:
Yes
Locking Handle:
No
Jaw Type:
Round - Serrated
Jaw Length (Inch):
4.5
Jaw Length (cm):
11.4
Maximum Safe Load (lb):
5000
Maximum Safe Load (kg):
2268
Weight (lb):
4.4
Weight (kg):
2
UPC:
92644477591
California residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.
Warnings
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
- Do not exceed rated capacity.
- Always match proper size and type of grip to application.
- Grips are to be used for temporary installation, not for permanent anchorage.
