Digital Multimeter TRMS/Low Impedance, 1000V
MM700
Digital Multimeter TRMS/Low Impedance, 1000V
MM700
$111.00
Multimeter with automatic ranging true root mean square (TRMS) technology for increased accuracy
Tester measures up to 1000V AC/DC voltage, 10A AC/DC current and 40MOhms resistance plus temperature, capacitance, frequency, duty-cycle, test diodes and continuity
CAT IV 600V Safety Rating
Built to withstand a 6.6-foot (2m) drop and withstand daily wear and tear on the job site
Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
For use in basic and controlled electromagnetic environments such as residential, business and light-industrial locations

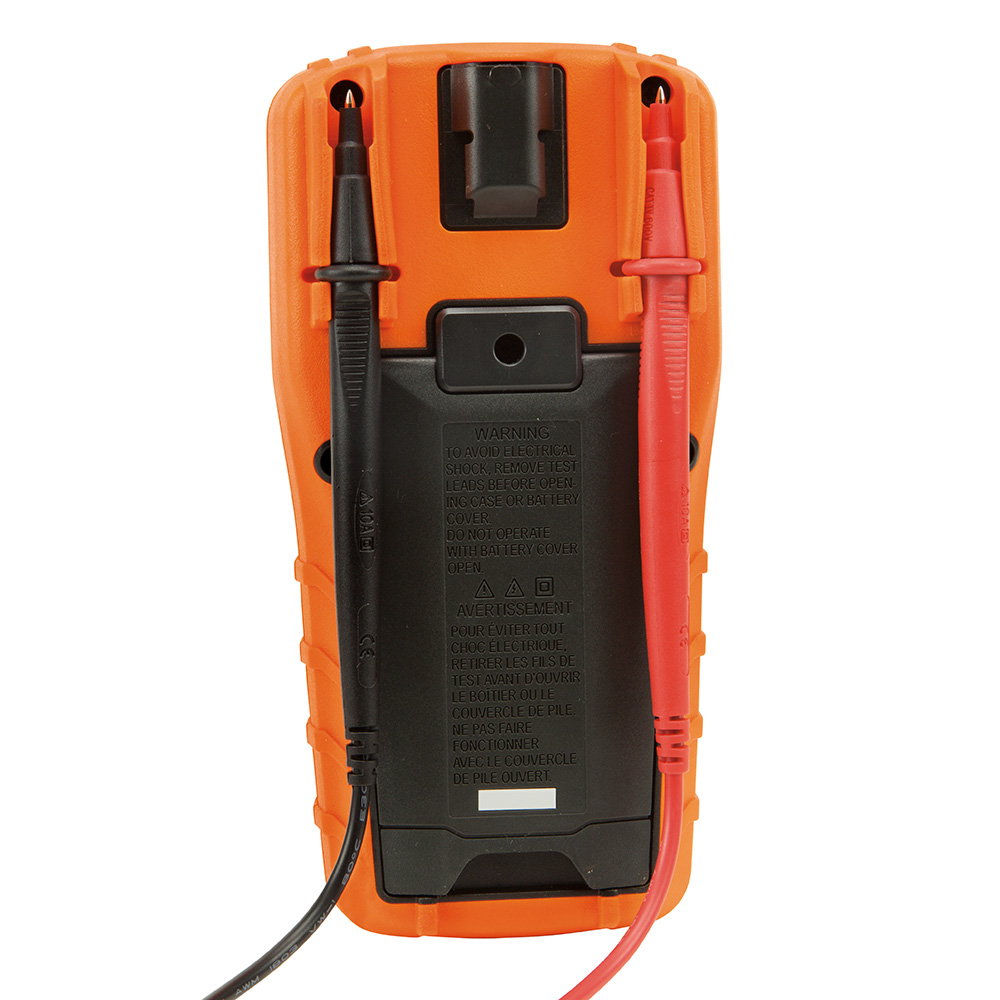

Low battery indicator and easily accessible battery and fuse replacement compartment

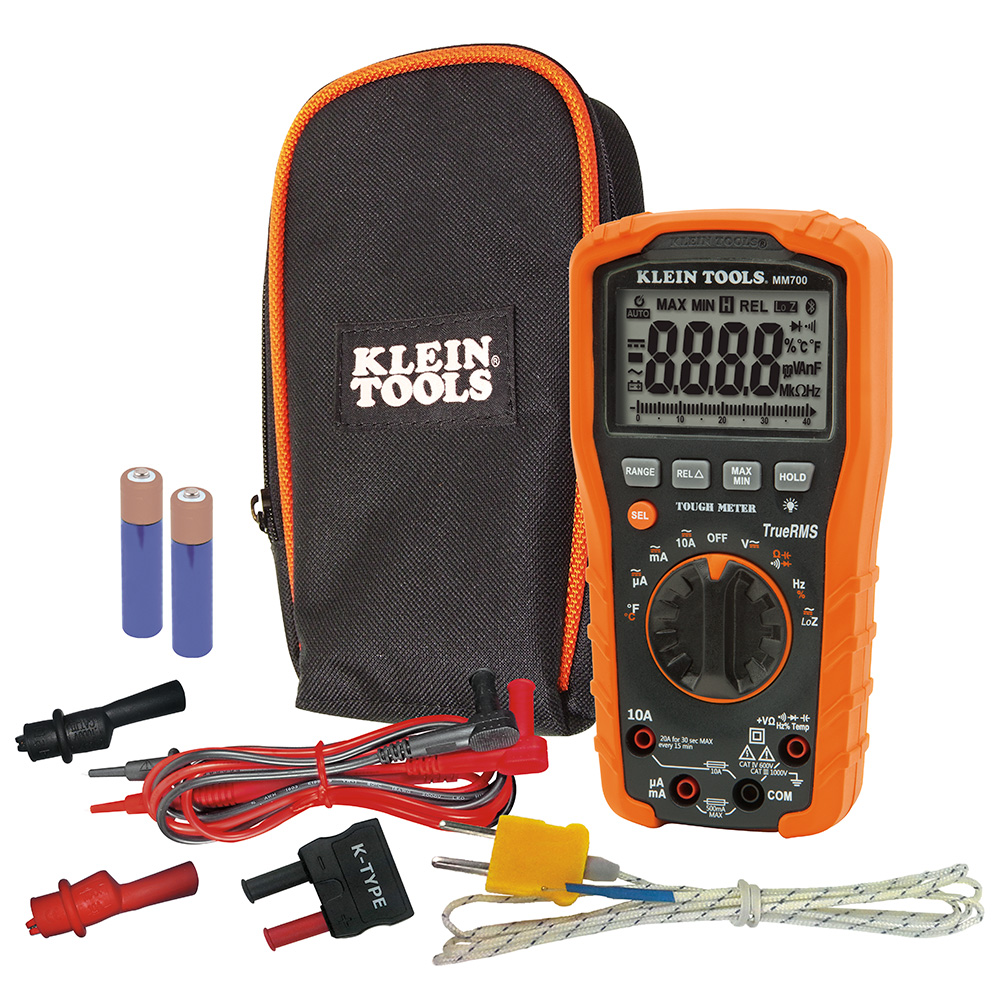

Includes carrying pouch, test leads, alligator clips, thermocouple with adapter and batteries

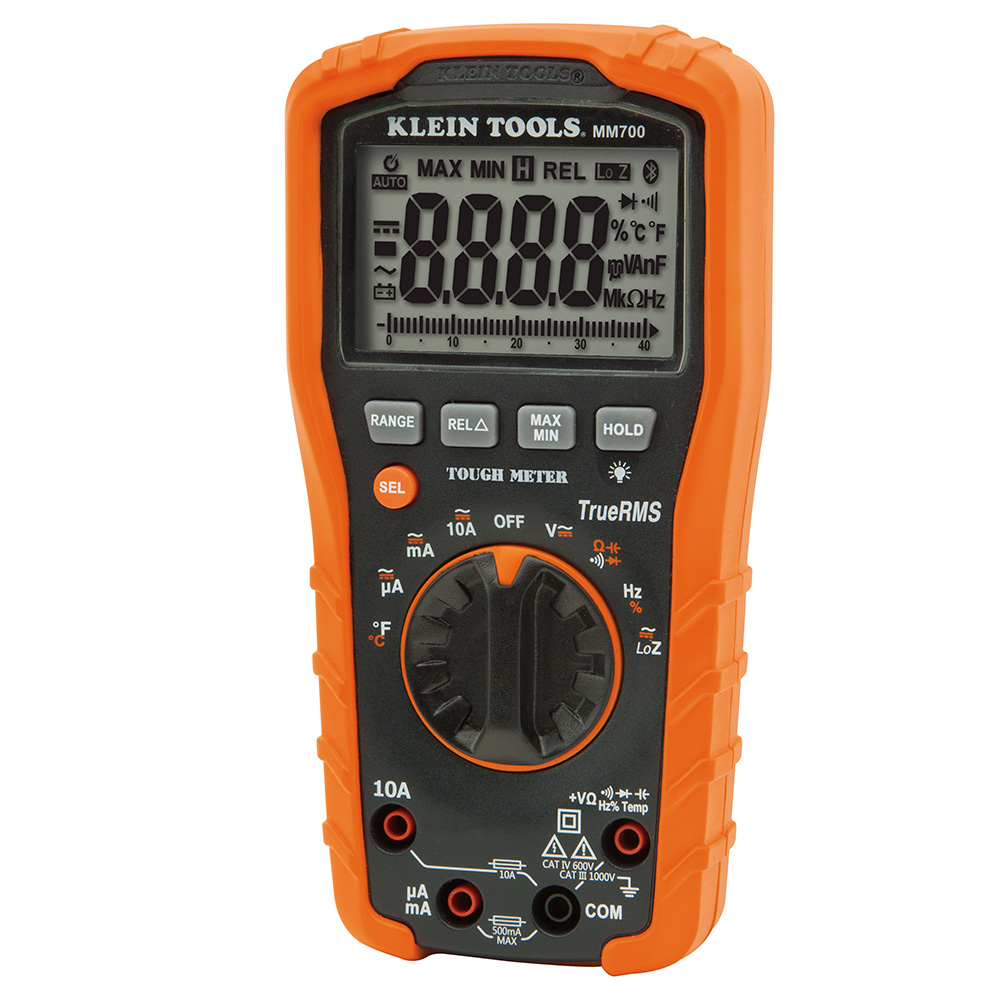

Klein Tools MM700 Multimeter is an automatically ranging true root mean squared (TRMS) digital multimeter that measures AC/DC voltage, AC/DC current, and resistance. It can also measure temperature, capacitance, frequency, duty-cycle, diodes and continuity. Klein Tools’ Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features.
Specifications
Batteries:
2 x AAA
Drop Protection:
6.6' (2 m)
Display:
4000 Count LCD
Functions:
Measures up to 1000V AC/DC voltage, 10A AC/DC current and 40MΩ resistance plus temperature, capacitance, frequency, duty-cycle, diodes and continuity
Voltage:
1000V AC; 1000 V DC
Frequency:
1Hz - 500 KHz
Current:
10A AC; 10A DC
Capacitance:
4000µF
Ohms (Resistance):
40MO
Ingress Protection:
IP42
Standard:
CAT IV 600V; CAT III 1000V
Temperature Range:
0° - 1500°F (-18° - 816°C)
Included:
Carrying Case, Test Leads, Thermocouple, Batteries, Alligator Clips, and User Manual
Overall Length:
7'' (17.8 cm)
Overall Height:
2.09'' (5.3 cm)
Overall Width:
3.55'' (9 cm)
Weight:
14.4 oz (408 g)
UPC:
92644690235
California residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.
Warnings
- Do not attempt to measure resistance or continuity on live circuits.
- Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
- Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
- Before each use verify meter operation by measuring a known voltage or current.
